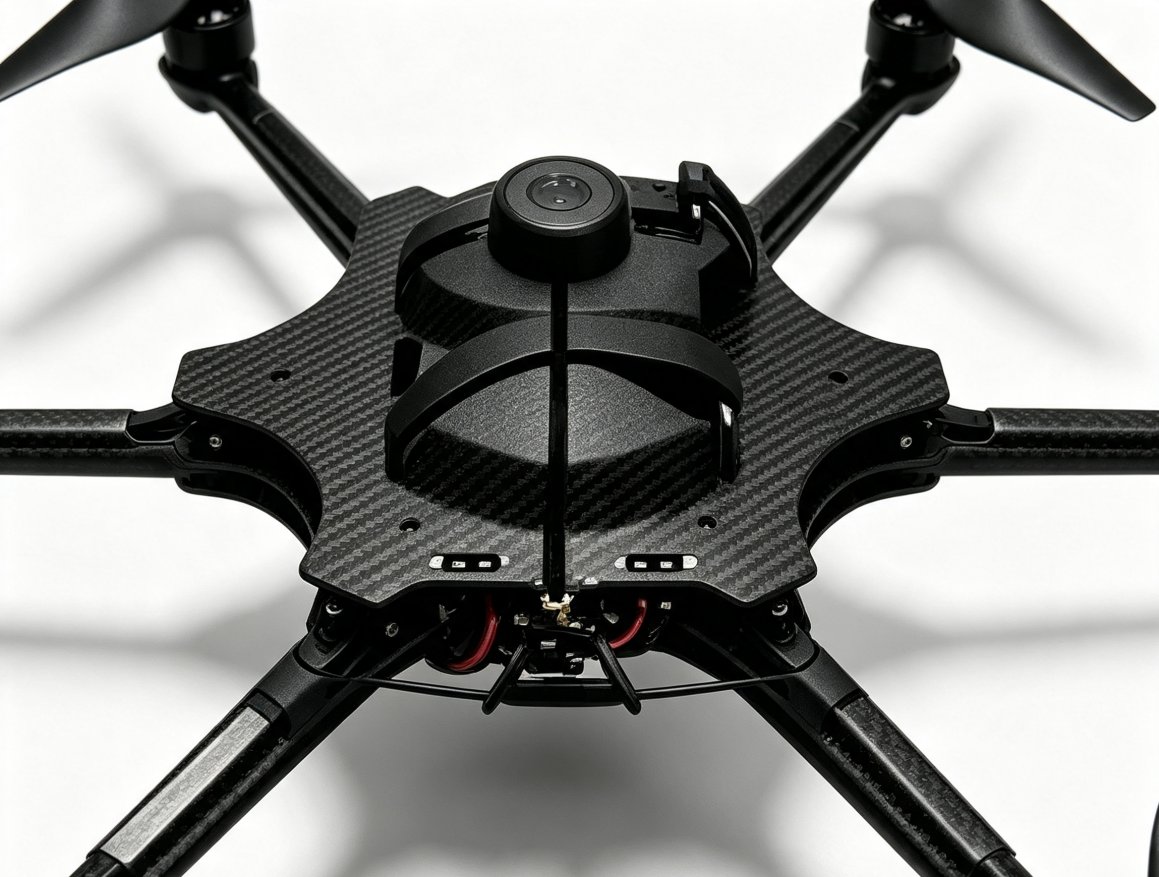

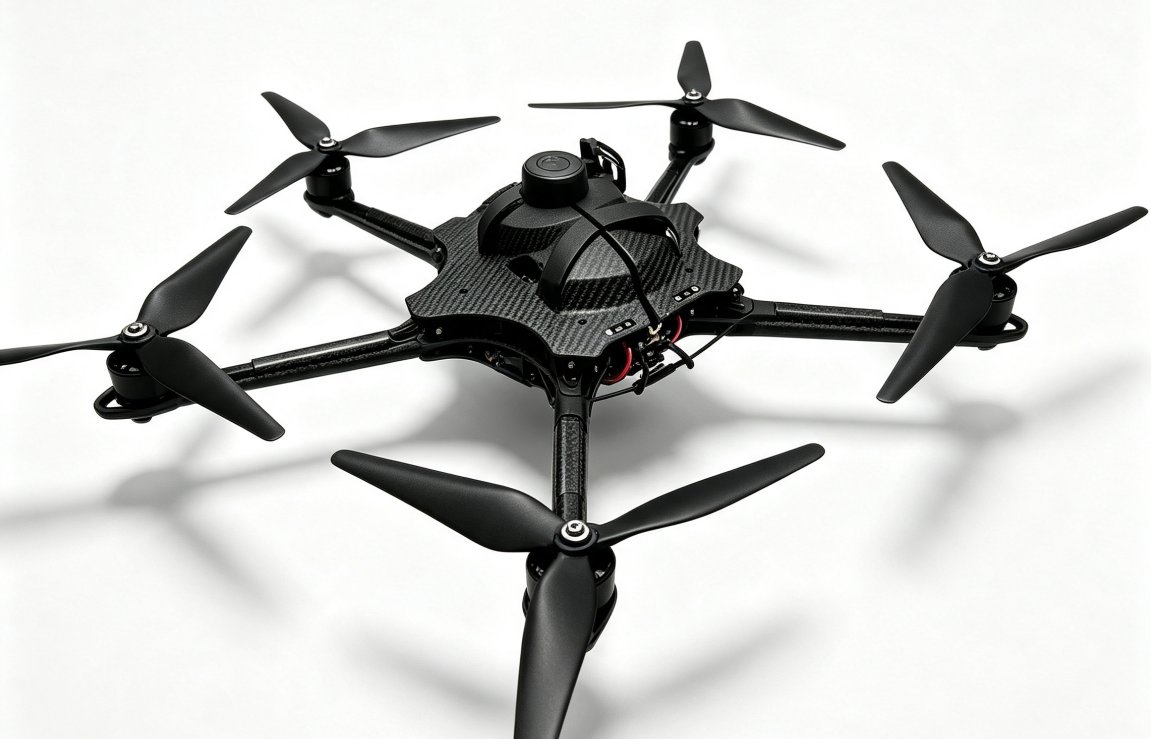

Meet AS106PRO – High-Speed Heavy-Duty 10-inch Hexacopter Engineered with full carbon fiber frame & ArcoSky core components, this industrial drone delivers 6kg max load capacity, 26 mins no-load flight time, 175km/h blazing speed and 20km long-distance flight. Reliable for cargo transport, aerial survey & commercial FPV operations.
Item Parameter
Model: AS701PRO
Product:7 Inch FPV Drone
Max Take-off height: 5000m
Max Speed: 160 KM/H
Max Flight Distance: 20km
Rated Load: 1500g
Max Load: 2300g
Max Take-off Weight: 3300g
No-load Endurance Time: 35 min (6S 8000mAh)
Rated Load Endurance Time:15 min (6S 10000mAh)
Motor: High-efficiency 2807 Motors
Frame:7-inch Carbon Fiber Frame
Weight:540g
Wheelbase: 310mm
Size: 276mm × 241mm × 60mm
Flight Controller: ArcoSky BL F405
ESC: ArcoSky 50A/60A 4-in-1
VTX: ArcoSky 5.8G 2.5W/3W
Camera:ArcoSky 1500TVL Low-latency FPV Camera
Motor:ArcoSky 2807 1350KV
Propeller: 7035/7040 (PC)
Power Input:6S (Not included battery) No-load Flytime : 30 minutes Maximum load 2kg Load capacity 1.5kg Flytime: 9 minutes 6S6000mah lithium battery Frame wheelbase: 295mm Weight: 470g (without battery) Motor: 2807 1300KV brushless motor ESC: 4in1 BLheliS 60A/Flight Control: F405 Camera: 1500TVL VTX: 5.8G/2.5W Receiver: ELRS915 Propeller: 7040 3-blade propeller Packaging: 1x 7-inch FPV Drone 1X 5.8G Antenna 1X7040 propeller (2 pairs) 2x battery straps
Power Input:6S(Not included battery) No-load Flytime: 30 minutes Maximum load 2.5kg Load capacity 2kg Flytime: 8 minutes 6S 5600mah lithium battery Frame wheelbase: 367mm Weight: 660g (without battery) Motor: 2810 1300KV brushless motor ESC: 4-in-1 BLheliS 60A Flight control: F405 Camera: 1500tvl VTX: 5.8G/2.5W Receiver: ELRS915 Propeller: 8040 3-blade propeller Packaging: 1x 7-inch FPV Drone 1X8040 propeller (2 pairs) 2x battery straps
Power Input:6S(Not included battery) No-load Flytime: 30 minutes Maximum load 2.5kg Load capacity 2kg Flytime: 8 minutes 6S 5600mah lithium battery Frame wheelbase: 367mm Weight: 660g (without battery) Motor: 2810 1300KV brushless motor ESC: 4-in-1 BLheliS 60A Flight control: F405 Camera: 1500tvl VTX: 5.8G/2.5W Receiver: ELRS915 Propeller: 8040 3-blade propeller Packaging: 1x 8-inch FPV Drone 1X8040 propeller (2 pairs) 2x battery straps
Power Input: 6S(Not included battery) No-load Flytime: 30 minutes Maximum load: 4kg Load capacity: 3.5kg , Flytime: 8 minutes 6S 8000mah lithium battery Frame wheelbase: 427mm Weight: 860g (without battery) Motor: 3115 900KV brushless motor ESC: 4 in1 BLheliS 60A Flight control: F405 Camera: 1500tvl VTX: 5.8G/2.5W Receiver: ELRS915 Propeller: 1050 3-blade propeller Packaging: 1x 10-inch FPV Drone 1X1050 propeller (2 pairs) 2x battery straps
Top speed：175m/h Rated load：5000g Maximum load：6000g Maximum takeoff weight：8000g Flight Control：TCMMBLF405（Optional configuration）ZTW：TCMM80A Motor：TCMM 3115 900KV
Top speed：156km/h Longest flight：20km Rated load：4500g Maximum load：5000g Flight Control：TCMMBLF405 （Optional configuration） ZTW：TCMM60A （Four-in-one） Motor：TCMM 3115 900KV
Power Input:6S(Not included battery) No-load Flytime: 40 minutes Maximum load 6kg Load capacity 6kg Flytime: 8 minutes 6S 10000mah lithium battery Frame wheelbase: 540mm Weight: 1860g (without battery) Motor: 4215 600KV brushless motor ESC: 4 in 1 BLheliS 80A Flight control: F405 Camera: 1500tvl VTX: 5.8G/2.5W Receiver: ELRS915 Propeller: 13x9x3 3-blade propeller Packaging: 1x 13-inch FPV Drone 1X 13x9x3 propeller (2 pairs) 2x battery straps
Power Input: 8S(Not included battery) No-load Flytime: 40 minutes Maximum load：10kg Load capacity 10kg Flytime: 8 minutes 6S 22000mah 29.6V lithium battery Frame wheelbase: 540mm Weight: 2600g (without battery) Motor: 4720 380KV brushless motor *4 ESC: 4 in1 BLheliS 100A Flight control: F405 Camera: 1500tvl VTX: 5.8G/3W Receiver: ELRS915
